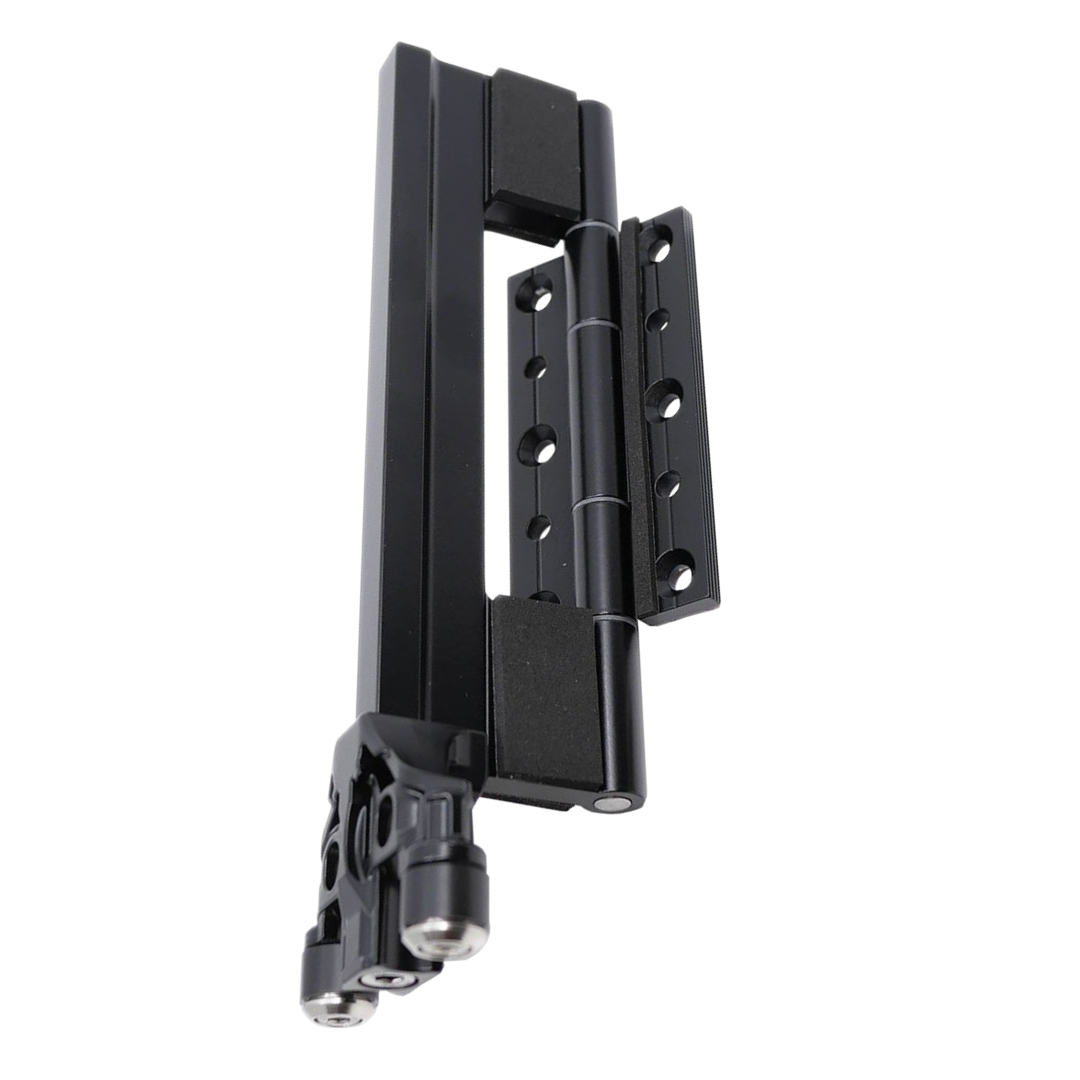

V1 Top Guide
Features & Benefits
Suitable for Smarts and Exlabesa systems
Slim design
Security tested to PAS 24
Weather tested to BS 6379 part 1 & 2
Successfully cycle tested bi-fold set at maximum weight. 10,000 times open/close
Quality manufactured to BS EN ISO 9001:2019
All stainless-steel clamp plates and fittings supplied
Suitable for door panels up to 120kg and 1200mm wide
Roller & hinge body made from extruded aluminium. Stainless steel pins for strength and durability. Bushes have high load qualities and are self-lubricating
Incorporates sealing strip between hinge leaves for improved weathering
Polyester powder coating (PPC)
10-year manufacturer’s warranty
No additional machining required for PAS24
Debar Part Number: DBV1-14
